unimes.ME
Flex­ible, Safe, and Funct­i­onal


Aim high in your elect­rical projects.

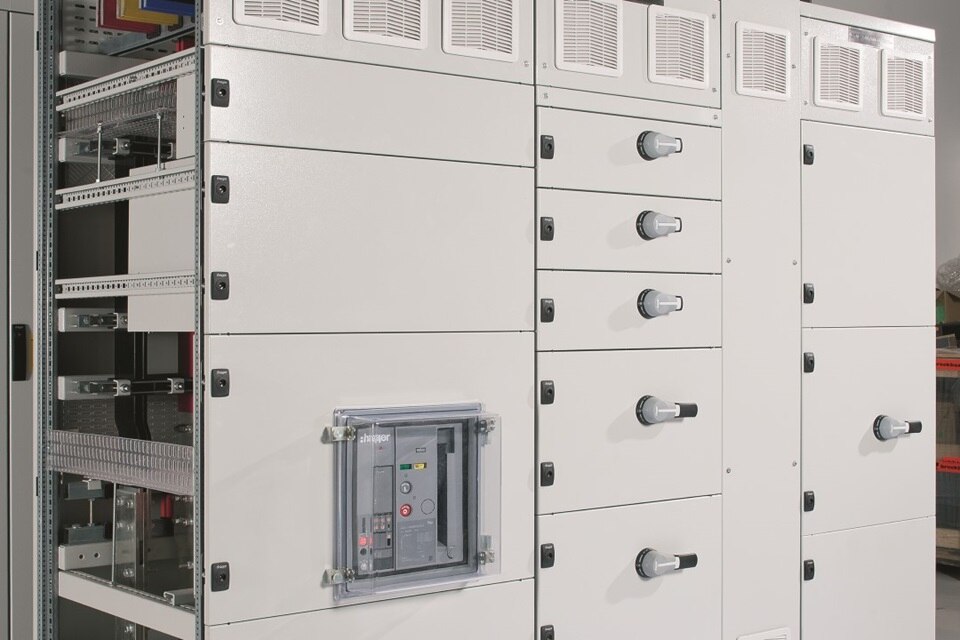

To create pote­nt­ials and embrace the chal­le­nges for tomo­rrow, Hager introduces its ground-brea­king low voltage main distrib­ution board unimes.ME - the corn­e­rstone for all elect­rical instal­lat­ions. unimes.ME main distrib­ution boards provide comp­re­he­n­sive range of solut­ions that caters to vers­atile project requirements.

univers

True greatness is shown in the details


Local content

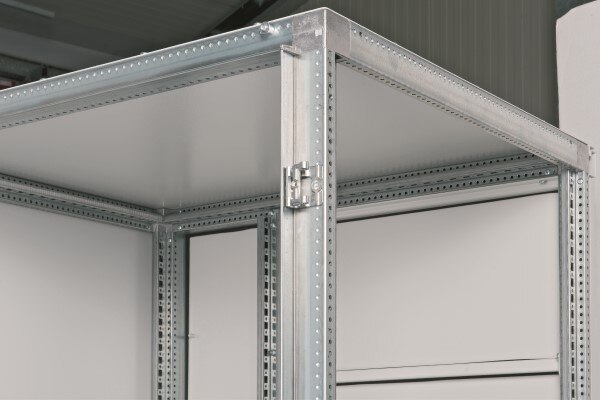

Structure

Just two cabinets form the basis of unimes.ME, providing a simple and flex­ible system. The profiles are fitted with unique corner pieces offe­ring maximum rigidity.


Local content

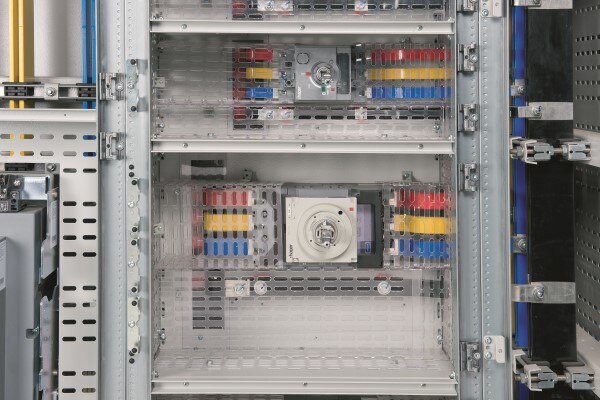

Part­it­ions

Inte­rnal metallic and non metallic part­it­ions up to form 4b provide maximum prot­ection against direct contact with any live parts. The form 4b part­ition also limits contact with solid bodies.

Local content

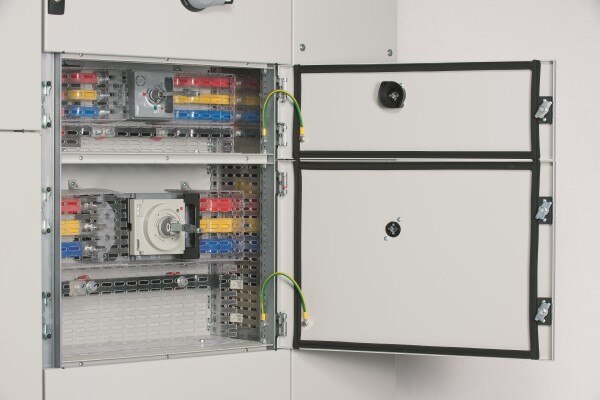

Ingress prot­ection

Distrib­ution boards must be able to operate reli­ably for many years under difficult envi­ronme­ntal cond­it­ions. With an IP54 rating, unimes.ME provides comp­lete safety from foreign solid bodies or liquids.

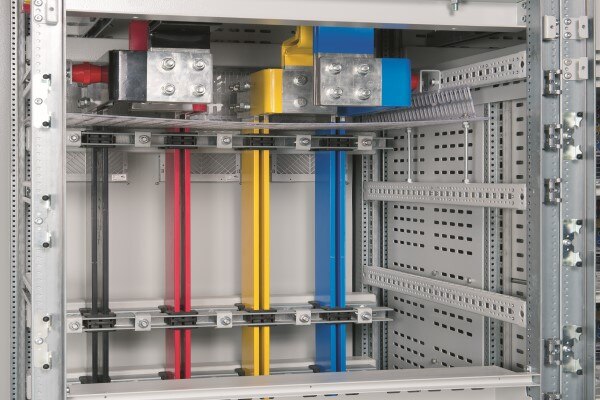

Busbar system

Busbars are encl­osed in fully part­it­i­oned comp­artments. They consist of one or more copper bars per phase held by funct­i­onal busbar supp­orts. The main busbars are mounted horizontally while the distrib­ution busbars are mounted vert­ic­ally to enable front and rear access to the busbars.

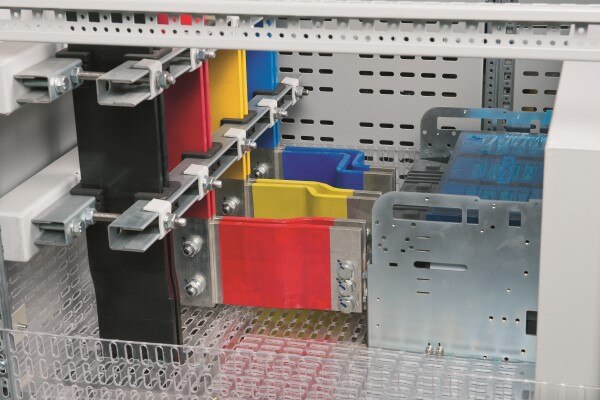

Busbar support

The unimes.ME is fitted with type tested busbar supp­orts suit­able for copper bars. Together, they support a current of up to 2500A and a short-circuit current of 50kA (3sec). The optimum arran­gement of the busbars reduces power diss­ipation and increases the safety of instal­lat­ions.

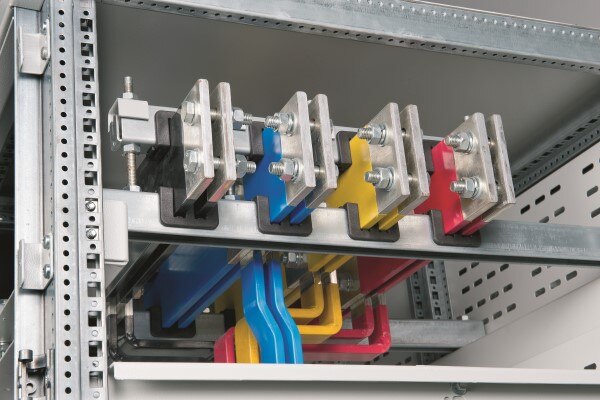

Busbar coup­ling

The ample space in the main busbar chamber provides easy and safe coup­ling between the diffe­rent encl­os­ures. This reduces the assembly time and also increases the safety of operation.

of

unimes ME is here

Design-veri­fied acco­rding to inte­rn­at­ional standard for perfo­rmance and safety IEC 61439-1 and 2 by a third party cert­ific­ation organ­iz­ation to ensure maximum perso­nnel and system safety.

A solid grounding

Right from the start, unimes ME does more. Choosing, confi­guring and physic­ally building an elect­rical distrib­ution system now becomes sign­ific­antly faster and easier.

Safety first

More safety levels, incl­uded liability, inde­pe­nd­e­ntly tested and approved to Euro­pean standards, a design-verfi­fied assembly and more stre­ngth.

Syst­ematic­ally better

Peak perfo­rmance, cons­istent quality and effic­i­ency in elect­rical distrib­ution. In the smal­lest detail, from one reli­able, proven partner.

Easier assembly

The panel assembly has evolved to be faster and more effic­ient. With less manual work, easy mainte­n­ance and  modific­at­ions alike.

More poss­i­bi­l­ities

Evol­ution is about advanced solut­ions. quadro evo is open to all rele­vant techn­ical advances – now and in the future.
